GP4518 Airless Painting Equipment are the professional spraying equipments of inorganic zinc and epoxy zinc-rich coating, they are the third generation series products invented by our company.

GP4518 Airless Painting Equipment are applicable to spray on varied thick layers of inorganic zinc or epoxy zinc rich coatings and also applicable to auto shot coating lines of varied steels, maintenance bottom coating, oil coating, magnetic coating, other WB coatings, regular oil coating, anti-fire coating and varied coatings in the workshop of spraying inorganic zinc or epoxy zinc rich.


Application:

GP4518 Airless Painting Equipment are mainly implemented on coatings of big components like steel structure,C type steel,car,trailers,floors,railway vehicles,pressure containers,Tubing,lifting equipment,dust removal equipments, wind power equipments,mining equipments,containers,pipes, tanks,bridges,water gate etc

Model: GP4518 Airless Painting Equipment
Pressure conversion ratio: 45: 1
No-load displacement(L/min): 14
Inlet pressure(MPa): 0.3-0.6
Air consumption(L/min): 220-2200
Cylinder diameter(mm): Ф200
Dimensions(mm)width×height×high: 520×520×930
Weight(kg): 52

Model GP4518 Spare Parts List
1. Airless sprayer equipment                   1 set
2. Airless sprayer gun SPQ-2                  1 set
3. Rotating nozzle                                     1 set
4. High-pressure hose(¢8mm X 10m) 1 set
5. High-pressure hose(¢6mm X 2m)   1 set
6. Transition joint (M14X1)                        1 set
7. Spare parts supplied by manufacturer  1 set
8. Hook spanner 78-85                             1 set
9. Hook spanner 55-62                             1 set
10. Inner hexagon spanner 5mm              1 set
11. Inner hexagon spanner 6mm              1 set
12 Product instruction manual                  1 copy

Optional Repare Kits For 1.5 Years Used

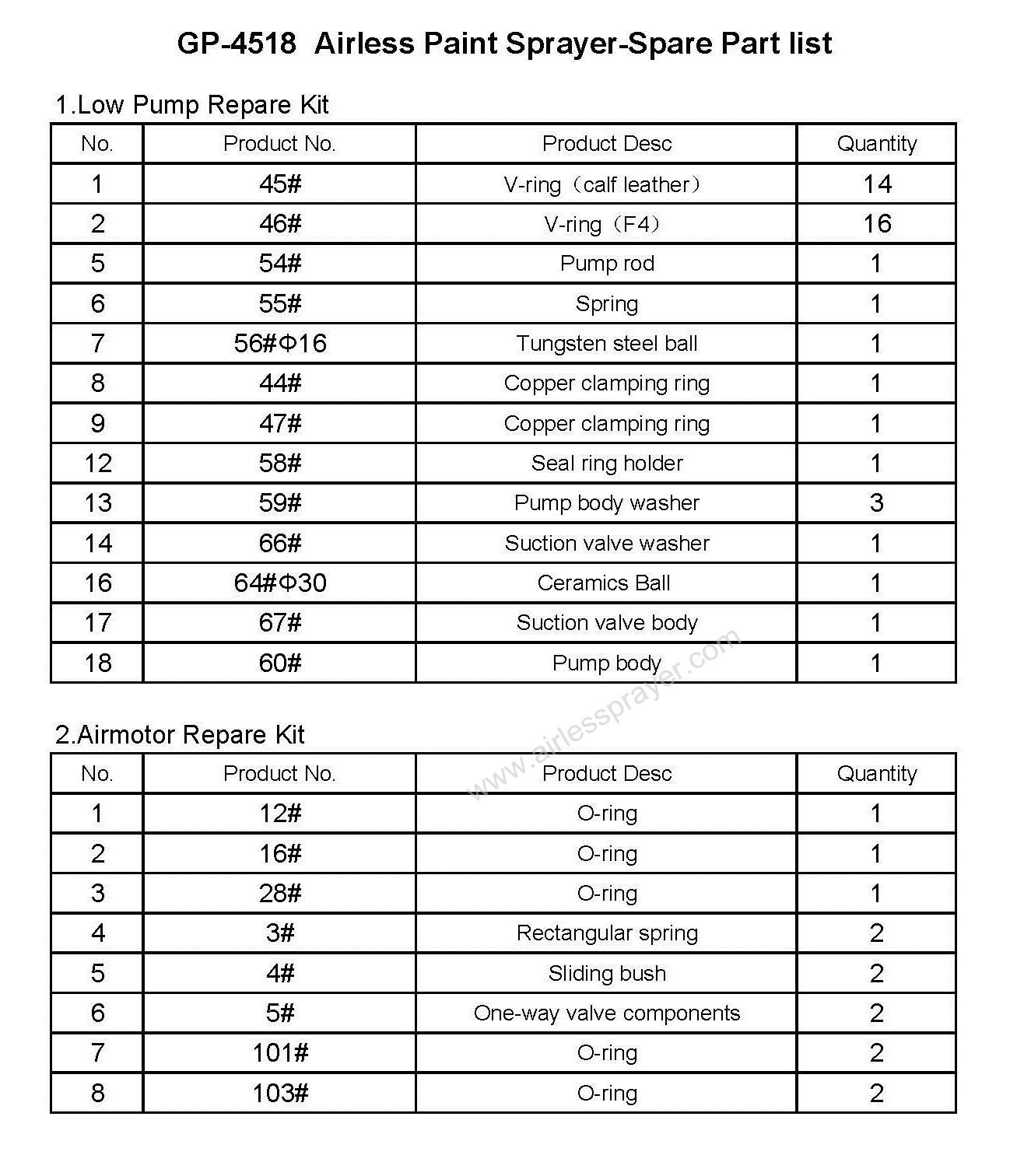

GP4518-Airless Painting Equipment Spare Parts-list

  • Pressured air as the power, steady and reliable, malfunction ratio is extremely low.
  • Pressure pulsation is small; the coating layer is even, the coating quality is better.
  • The route is long, the exhaust is big, the frequency of switching direction is low, hard to be damaged by friction, the life of the machine and the maintenance cycle extends.
  • Use new type silencing device.
  • GP4518 Airless Painting Equipment is a type of small car, the structure is close, the movement is convenient.
  • GP4518 Airless Painting Equipment is applicable to the spraying of coatings with thick serum and high density and all kinds of regular coatings; it meets the requirement of heavy duty coatings
  • Typical application: sprayings for big components like steel structure,ships,trains,cars,trailers,floors,pressure containers,railway vehicles,containers,pipes,tanks,bridges,Tubing,lifting equipment,water gate etc.
