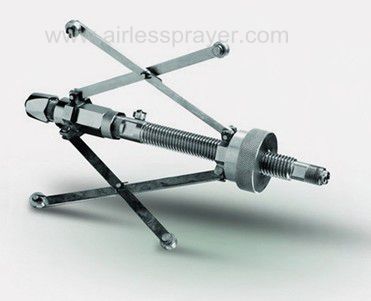

NKP-1 Internal pipe paint sprayer which is inner wall spray device is for bore and medium-sized pipe inner wall coating, high-pressure paints which transfers from the airless spray coating machine and goes through a special nozzle is formed a trumpet (Cone -shaped, hollow), evenly spray the inner surface of the pipe which lead to successful pipe coating.
NKP-1 Internal Pipe Coating System is mainly applied in Ф50 – Ф300mm(2”-12”) pipes, paint viscosity shall not exceed 80 seconds (No. 4 Ford cup). If the pait viscosity is higher than 80 seconds, solvent should be added for dilution.
NKP-1 type basically is unaffected by pipe length, but preferably pipe length is not longer than 15 meters.
For better spraying performance,we recomment to equip NKP-1 with GP-9C Airless Sprayer.
NKP-1 Internal Painting Equipment Connection Chart:
Model: NKP-1 Pipe Paint Sprayer
In spray coating pipeline hole scope (mm): Ф50-300(2”-12”)
Fuselage length (mm): Ф50×280(Long)
Fuselage weight (kg): 0.9
Coating controlling switch spray gun weight(weight): : 0.45
