Application:
Aluminium profiles,security doors
Solar water heaters,insulation tank
Ship Carbin,
Refrigerators,Packing Model
Road construction,Wall insulation,
Gap Filling,Pipe insulation
General Introduce:
Polyurethane Foam Injecting Machine is made by mixing and reacting chemicals to create a foam. The mixing and reacting materials react very quickly, expanding on contact to create foam that insulates, air seals and provides a moisture barrier. SPF insulation is known to resist heat transfer extremely well, and it offers a highly effective solution in reducing unwanted air infiltration through cracks, seams, and joints.
Polyurethane Foam Injecting Machine Benefit:
Prevents Air,mositure,vapor and sound infiltration
Reduces energy usage and heating and cooling costs
Increases building and occupant comfort
Meets new building codes and green building certificate

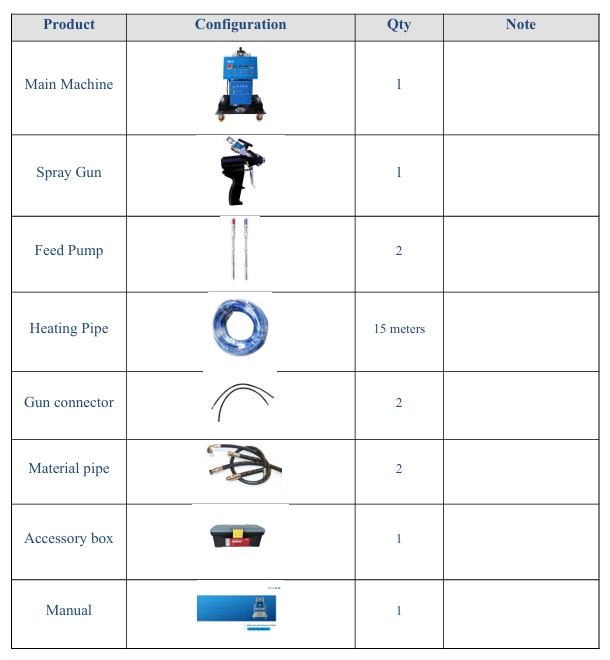

Standard Configurations：
Model: PUI-3D Polyurethane Foam Injecting Machine
Power：Single Phase 220V 50HZ
Heating power：7.5KW
Driven： Pneumatic
Air source：0.5~0.8 MPa
Air capacity：≥0.9m3/Min
Flow Capacity：2~12 kg/Min
Max output pressure：11Mpa
AB material output ratio：1:1
Max output distance：60 meter
Package: Wooden
Packing Dimension：910mm X 890mm X 1300mm
Gross Weight：109KG
1. Pneumatic driven, with small volume, light weight, low failure rate, simple operation,easy operation
2. Feeding volume can be adjusted,Timing and Quantitative,
3. Advanced reversing direction method, make sure working stability.
4. Minimizing spraying block with multi-filter device
5. Multi-leakage protection system to protect the safety of the operator.
6. Equipped with emergency switch system, help operator deal with emergence rapidly
7. Heating system enables rapid warming of raw materials to the best working situation, speeds up normal operation progress.；
8. Digital counting system can understand original consumption timely.
