Vacuum Recovery And Blasting Machine

Vacuum Recovery And Blasting Machine can be used for surface treatment to iron and steel, shipbuilding, maritime,petrochemical,civil construction, bridges,cleaning, water pipes,tunnels and other industries of the rust,in addition to paint, weld treatment,deburring,fly edge,and oxide to concrete,stone surface dirt, etc.

Features:
Compact and robust multi-function machines are widely used Dust-free blasting, Blasting a low dielectric loss, Automatic sorting abrasive and Dust, abrasive automatically recycled.

Working environment is clean, No dust, No pollution, No waste!

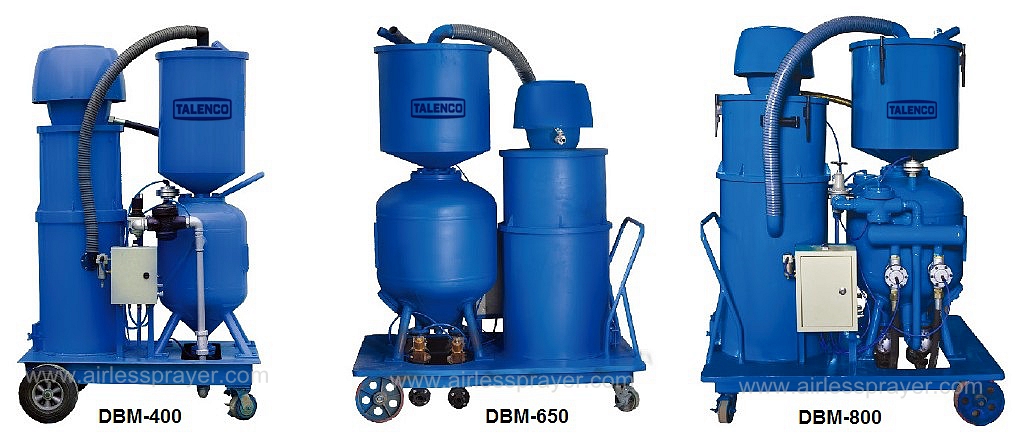

Type DBM-400 DBM-650 DBM-800
Efficiency Sa2.5-Sa3.0 Sa2.5-Sa3.0 Sa2.5-Sa3.0
Steel Surface 4-7m2/h 4-7m2/hx2 6-12m2/hx2
Concrete Surface 12-17m2/h 12-17m2/hx2 15-20m2/hx2
Standard hose length 20m 20m/40m 20m/40m
Blast head weight 1.08Kg optional optional
Abrasive Steel grit, Alumina, Glass shot etc.
Compressed air 6m3/min,7Kg/cm3 11m3/min, 7kg/cm3 13m3/min, 7kg/cm3
Capability of abrasive 50L 200 L 200L
Nozzle diameter 6.5mm or 8mm 8mm or 10mm 10mm or 13.5mm
Abrasive granule 0.12-2mm 0.12-2mm 0.12-2mm
Length*Wide*Height 1100x800x1700mm 1500x1000x19〇〇mm 1650x1250x2200mm
Weight 200Kg 440Kg 520Kg
Vacuum source SE83 SE83 SE83
Max.hose length 40m 2 2
Control method Pneumatic control
