1" Pro Series Diaphragm Pumps

TALENCO A30 1″ Pro Series Diaphragm Pumps are designed for general fluid transfer.
Our diaphragm pumps reliably transfer a wide variety of fluids, from clean, light viscosity to medium viscosity.
They can pump large particles without damage.

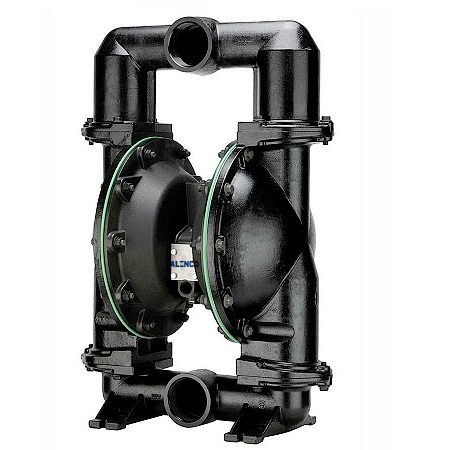

1” Metallic Diaphragm Pump (Teflon)  similar as 666100-344-C

  • Gallons per minute (GPM): 35
  • Fluid cap and manifold: Aluminum
  • Center section: Aluminum
  • Seat material: Polypropylene
  • Ball material: Teflon (PTFE)
  • Diaphragm material: Teflon (PTFE)
  • Fluid section connection: 1″ N.P.T
  • Air section rebuild kit: Part number 637118-C
  • Fluid section rebuild kit: Part number 637119-44-C
Model
A10
A15
A20
A26
A30-ARO 1”
Max Working Pressure
0.7Mpa
0.7Mpa
0.7Mpa
0.7Mpa
0.7Mpa
Max Flow Rate
5L/Min
36 L/Min
48 L/Min
56L/Min
180L/Min
Air Inlet Size
1/4” NPT
1/4” NPT
1/4” NPT
1/4”’ NPT
1/4”’ NPT
Fluid Inlet Size
3/8” NPT
3/8” NPT
1/2” NPT
3/4”’ NPT
1 ” NPT
Fluid Outlet Size
3/8” NPT
3/8” NPT
1/2” NPT
3/4”’ NPT
1 ”’ NPT
Max Suction Height
5m
6.4m wet,
3.7m Dry
6.4m wet,
3.7m Dry
6.4m wet,
3.7m Dry
6.4m wet,
3.7m Dry
Max Permitted Grain
1mm
2mm
3mm
3mm
6mm
Weight
7.5kg/Unit
8kg/Unit
19Kg/Unit
20Kg/Unit
20Kg/Unit
Dimension

4Units 1 Carton

58*50*40cm
2 Unit 1 Carton
58*50*40cm
2 Unit 1 Carton
58*50*40cm
2 Unit 1 Carton
58*50*40cm
2 Unit 1 Carton
58*50*40cm

    Your Name (required)

    Your Email (required)

    Subject

    Your Message

    Strong Advantage

    1. Premium Quality Diaphragm with more durability, Raw Material from Japan Dakin
    2. Air-Valve are processed by Solid Alum, 3 times working life than other Not Die-casting Recycle materials
    3. Can Supply Air Kit and Wet Kit as similar as ARO pump
    4. Professional Diaphragm pump factory, Lead time for 500 units only takes 7 days
